Managing Moisture In The Desert

With strict dust control requirements, maximizing composting moisture content and using dust suppression equipment are key to operations in the desert environment.

March 11, 2019 | Composting, Facilities, Operations

Managing Moisture In The Desert

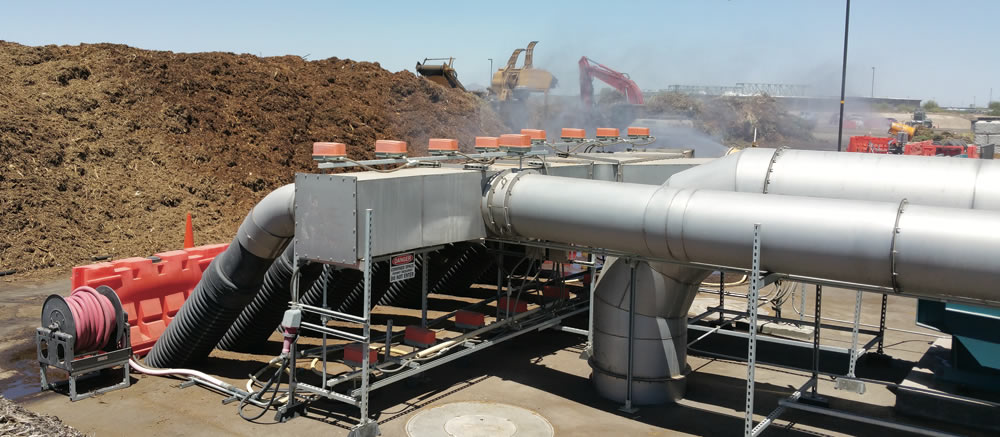

At the City of Phoenix’s aerated composting facility, air is preconditioned with moisture to mitigate overdrying of the piles, also providing a cooler air stream to the biofilter.

Craig Coker

BioCycle March/April 2019

The Phoenix composting facility uses a reversible aeration system with air delivered to, or extracted from, 175-feet long by 180-feet wide extended piles divided into 8 aeration zones.

The City of Phoenix, Arizona’s turned aerated pile (TAP) composting facility went into production mode in June 2017. It was designed by Green Mountain Technologies (GMT) to handle up to 55,000 tons/year (tpy) of mixed yard trimmings and food waste feedstocks. The facility is operated by WeCare Denali LLC. From July 2017 through June 2018, it was processing about 3,100 tons/month of incoming feedstock, of which 97 percent was yard trimmings and 3 percent was food waste. The inbound volumes of feedstocks have been increasing steadily each month since January 2018.
The Phoenix composting system has to manage moisture due to its arid desert environment and dry feedstocks. “The inbound material is usually around 30 percent moisture,” notes Stacy Hettmansperger, Operations Manager for the City’s Public Works Department. “We have strict dust control requirements, so are always thinking about maximizing our composting moisture content.” The piles can be watered while turning them and the facility also has high-powered irrigation guns to keep piles damp.

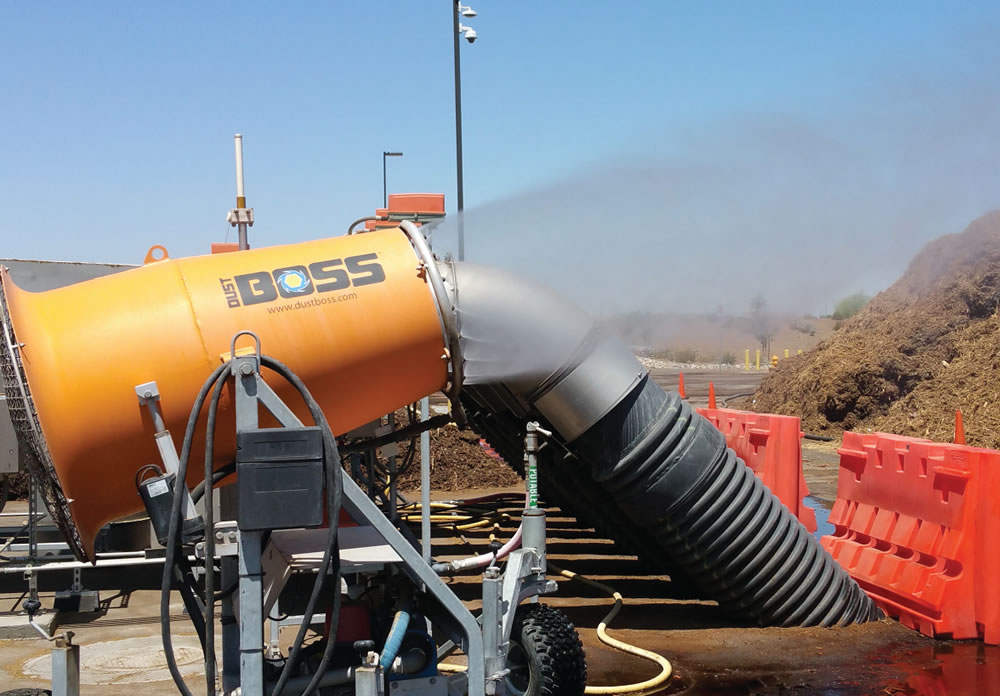

With strict dust control requirements, maximizing composting moisture content and using dust suppression equipment are key to operations in the desert environment.

Composting Configuration

The basic configuration of the Phoenix system was reported previously in BioCycle (see “Phoenix Composting Facility Rises from the Desert Floor,”). It is a reversible aeration system with air delivered to (or extracted from) 175-feet long by 180-feet wide extended piles divided into 8 aeration zones. The concrete aeration floor has nozzles approximately every 5 feet on center, fed by a long network of underground plastic HDPE pipes. The system is designed to turn every pile every 2 to 4 days using a Vermeer CT1010 elevated face turner, moving material 22 feet in each turning event. Phase 1 composting is planned for 27 days, followed by 18 days in Phase 2 and 10 days in curing for a 45-day total production cycle.
The aeration system can be run in all positive, all negative, or in an automatic reversing positive-negative loop, using the differences in high and low temperatures in an individual aeration zone. If the temperature at the bottom of a pile is high, more air is provided in the positive direction; if it is cooler, then the aeration zone reverses to pull air downward to cool the top and rewarm the bottom. Odor management is provided by a 6-inch thick biocover made from screened overs that is placed on piles in the first two zones only, and an 11,750 square foot stand-alone, surface-irrigated biofilter for negative air exhaust.

Cooling The Air

The challenge for this facility was how to cool the hot air coming from the piles at 130°F to the needed operational temperatures for the biofilter at 104°F or cooler. The aeration system has an unusual feature: the positive (forced) air stream is conditioned by misting water before entering the underground pipe network and going into the pile. “We basically installed a ‘swamp cooler’ on the pressure blower,” explains Jeff Gage, Senior System Designer for GMT. The 33,000 cubic feet per minute (cfm) pressure blower is equipped with a misting ring using nonpotable well water to saturate the feed air with cool water at a rate of 7.5 to 8 gallons per minute, which drops the air temperature going to the piles 18°F or more (up to a 30°F drop at times) in hot and dry desert conditions. When the blowers are reversed from positive to negative, the heated compost exhaust air enters the same piping (now cooled) which condenses the moisture out, dropping the temperature.

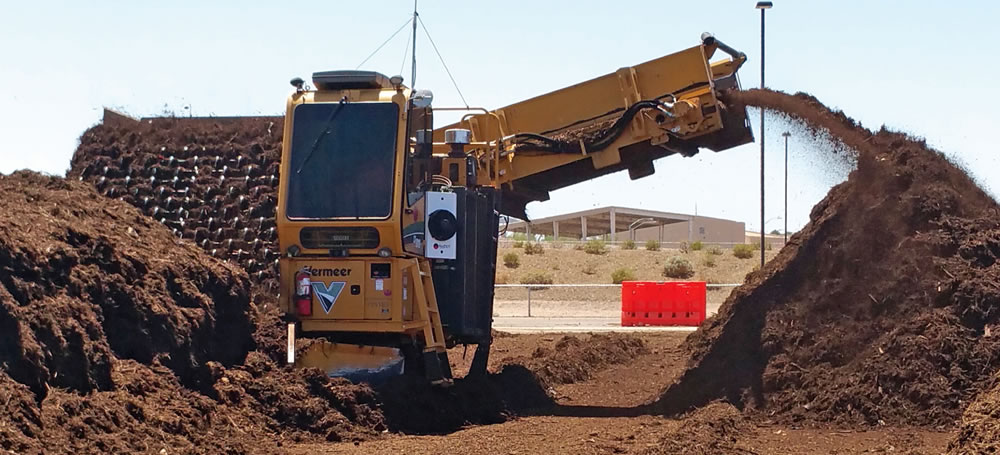

All piles are turned every 2 to 4 days using a Vermeer elevated face turner (above), moving material 22 feet in each turning event.

A “swamp cooler” works on the principle of evaporative cooling. (Moisten your finger and hold it up to feel the wind’s direction. That cooler feeling on the windward side is evaporative cooling). In dry, hot climates like Phoenix, evaporative cooling has been used as a means of cooling, however, it does increase moisture content of the air.
“We designed the system to counter the desiccating effect of summer desert air, which usually has less than 50 percent relative humidity and is 100°F or higher,” notes Michael Bryan-Brown, GMT President. “We thought we might lose as much as 5 percent of the moisture in a pile each day. We decided preconditioning the air with moisture would avoid over drying of the piles, would provide the biofilter a cooler air stream for better removal efficiencies, and would cool the underground piping, which makes it a heat sink and helps to condense the exhaust air when the system is operating in negative mode.”
There is also a separate damper-controlled air duct downstream of the misting ring that can redirect cooled air to the pressure side of the biofilter ductwork. The biofilter is designed for an operating temperature of 104°F, so the misters turn on automatically if the ambient temperatures are above 100°F. If the air flowing into the biofilter from the piles exceeds 104°F, the bypass damper opens to introduce misted air to precool the hot air entering the biofilter. Facility start-up during the hottest Phoenix summer conditions proved that the misting and cooling of the underground pipes was adequate and the redirected cooling air was not needed. This led to decreasing the area of the biofilter needed to treat an increased airflow.

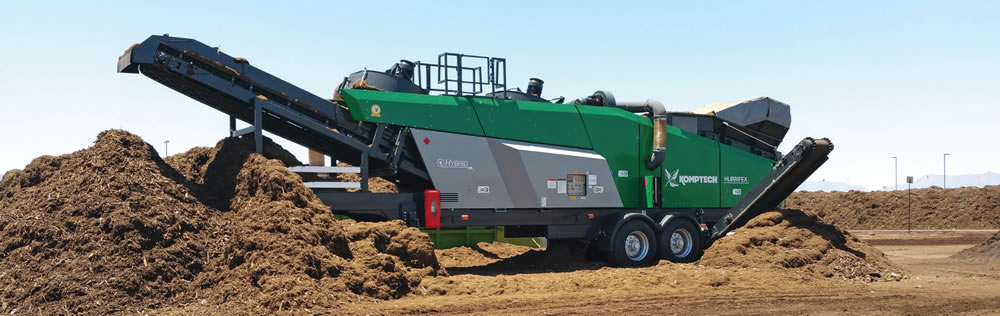

Finished compost is screened using a trommel, and then run through the Komptech Hurriflex (above) to remove film plastic and stones.

The negative aeration manifold drains to a 4,000-gallon concrete vault, which then overflows into a 50,000-gallon fiberglass tank for condensate reuse. The vault and tank include a coarse bubble diffuser to aerate the condensate to reduce the Biological Oxygen Demand (BOD) and potential odors. Fines vacuumed into the system by the negative aeration accumulate at the bottom of the vault, which the contractor can clean out with a vacuum truck. Water from the storage tank and the storm water pond is used by the CT1010 turner to water the piles while turning.
“Air preconditioning on the pressure side works here because of the size of the aeration system,” adds Bryan-Brown. “Smaller aerated static pile facilities usually have individual blowers on each pile, and it would be challenging to develop plumbing and control systems to precondition the air from each blower at that type of site.”
Craig Coker is a Senior Editor at BioCycle and CEO of Coker Composting & Consulting near Roanoke, VA. He can be reached at ccoker@jgpress.com.

Understanding Psychrometry

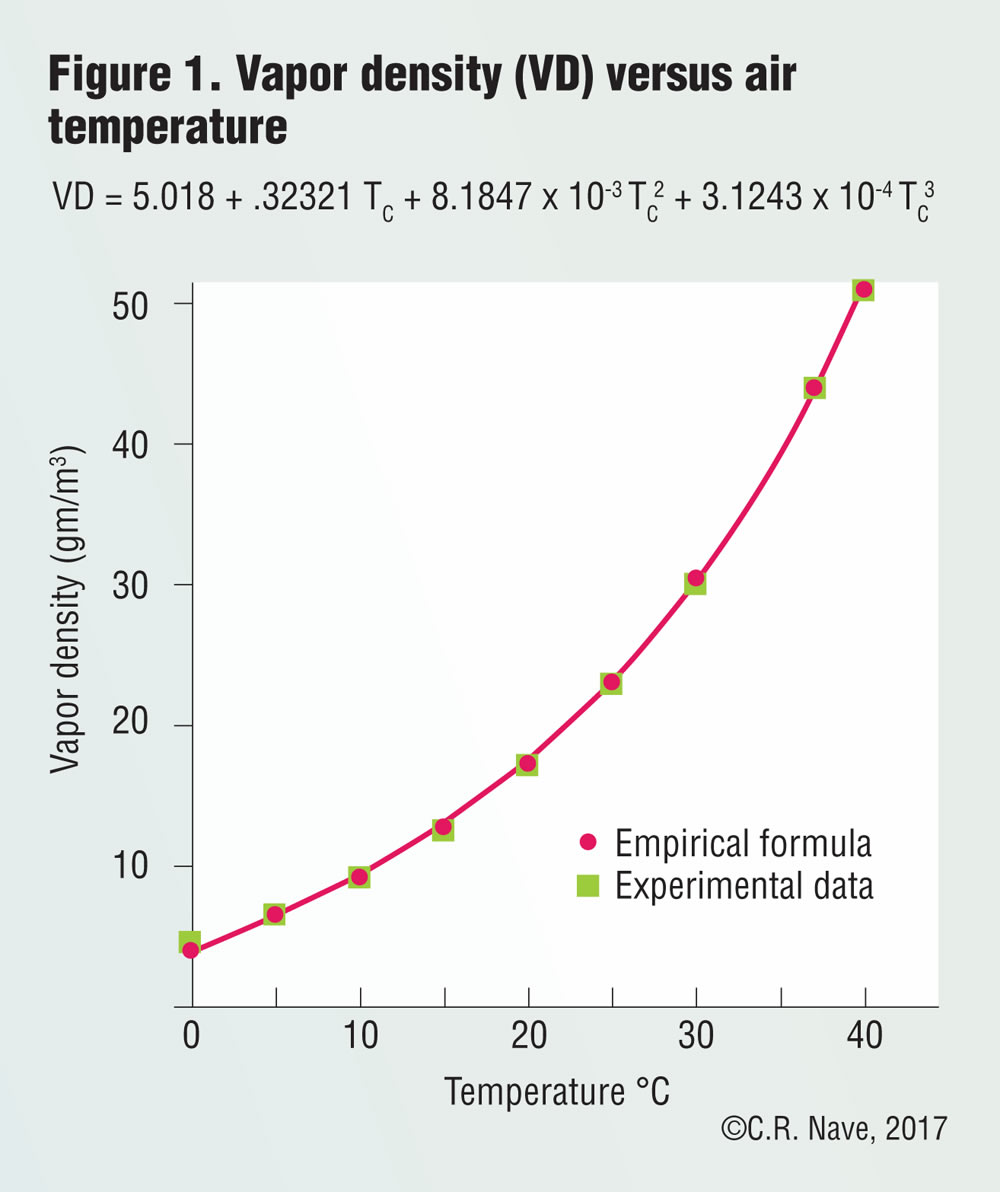

Figure 1. Vapor density (VD) versus air temperature

Psychrometry is the science of studying thermodynamic properties of moist air and use of these properties to analyze humid air conditions and processes. Designers of heating, ventilation and air conditioning systems (HVAC) use psychrometric charts — a graph of the physical properties of moist air at a constant pressure — to tailor systems to building conditions.
All changes in the properties of air and how they relate to each other can be described graphically on a psychrometric chart, and used to determine the value for various air properties.
In aerated static pile (ASP) composting, the science of psychrometry helps explain the interactions between an introduced air stream (with certain temperature and humidity characteristics) and an exothermic (heat-producing) pile of compostables (with its own temperature and moisture characteristics). Understanding these interactions enables composting practitioners to predict and manage important process control factors like temperature control and moisture loss due to evaporative cooling.
“Psychrometry finds application in predicting and designing the pretreatment of exhaust air that is to be scrubbed through a biofilter,” explains Tim O’Neill, President of Engineered Compost Systems. “When conditioning dry exhaust air from processing buildings in cool climates the design challenge is usually how to adequately humidify the air without overcooling it. When conditioning hot moist air drawn directly from an active composting pile, the design challenge is how to adequately cool the air stream to keep the biofilter below temperatures specified by the designer. In both cases, the psychrometric chart, and the First Law of Thermodynamics (conservation of energy), make it clear that there is no energy-free path to getting the job done.”
O’Neill uses the example of biofilter design to illustrate his point. “Design temperatures for biofilters are often at or below 105°F, yet compost exhaust air captured from negatively aerated piles can easily exceed 145°F,” he adds. “Exhaust air leaving an active composting pile in almost all cases is saturated (is holding as much water vapor as possible), i.e., it has a relative humidity (RH) of 100 percent. The thermal energy (enthalpy) contained in saturated air goes up exponentially with rising temperature. To cool saturated air by 40°F requires removing a surprising amount energy. To do this by mixing in cool air will require adding over two times the original air flow almost regardless of its temperature.”
Figure 1 plots the amount of vapor density in air (measured in grams of water per cubic meter of air versus temperature in degrees Celsius). Air at 40°C (104°F) can hold about 50 grams of water per cubic meter, while air at 20°C. (68°F) can only hold about 18 grams. The formula in Figure 1 is used to calculate vapor density empirically (red dots), and the example experimental data (green boxes).

Air Properties Glossary

Dehumidification can be achieved with a balance between cooling the air to remove moisture and then reheating it. It could also be done by an absorbent material such as sawdust, which absorbs moisture from the air.
Dew point temperature (DPT) is the temperature at which a moist air sample at the same pressure would reach water vapor saturation. At this saturation point, water vapor would begin to condense into liquid water fog or (if below freezing) solid hoarfrost, as heat is removed. The dewpoint temperature is measured easily and provides useful information but is normally not considered an independent property.
Dry-bulb temperature (DBT) is that of an air sample, as determined by an ordinary thermometer where the bulb is dry. This is the temperature normally monitored in composting. It is typically the x-axis, the horizontal axis, in Figure 1 and in a psychometric chart.
Wet-bulb temperature (WBT) can be measured by using a thermometer with the bulb wrapped in wet muslin. The adiabatic evaporation of water from the thermometer bulb and the cooling effect is indicated by a “wet bulb temperature” lower than the “dry bulb temperature” in the air. The rate of evaporation from the wet wrap on the bulb, and the temperature difference between the dry bulb and wet bulb, depends on the humidity of the air. The evaporation from the wet muslin is reduced when air contains more water vapor. The WBT is always between the DBT and the dew point.
Sensible cooling occurs when the air temperature is lowered without any change in its moisture content. The most common example is outside air as it cools in the evening.
Sensible cooling and dehumidification occur when both the air temperature and moisture content are lower. This is what occurs when the outside air temperature falls below the dew point, creating dew on the grass (dew is condensed atmospheric moisture content), and creating “still air” conditions where odors at composting operations hang close to the ground.
Heating and dehumidification require the air temperature to increase and the moisture content to decrease. Because the most common way to decrease moisture content is by cooling the air below the dew point, this would require cooling and then reheating the air. A dehumidifier running in a small room would achieve this result because the heat given off by the motor is more than the cooling. This causes the air temperature to rise while the moisture content is reduced.
Heating and humidification occur when both the air temperature and moisture content increase. This would happen, for example, in a furnace with a humidifier or an unvented combustion appliance, such as an unvented gas fireplace.
Humidification happens when moisture is added to the air without any change in air temperature.
Humidification and cooling occur when the air temperature decreases while the moisture content increases. This is what happens during evaporative cooling, such as in the Phoenix system.
Humidity ratio (also known as moisture content, mixing ratio, or specific humidity) is the proportion of mass of water vapor per unit mass of dry air at the given conditions (DBT, WBT, DPT, RH, etc.). It is typically the y-axis, the vertical axis, of Figure 1. For a given DBT there will be a particular humidity ratio for which the air sample is at 100% relative humidity. The relationship reflects the physics of water and air and must be measured. Humidity ratio is dimensionless but is sometimes expressed as grams of water per kilogram of dry air or grains of water per pound of air.
Relative humidity (RH) is the ratio of the mole fraction of water vapor to the mole fraction of saturated moist air at the same temperature and pressure. RH is dimensionless and is usually expressed as a percentage. Lines of constant RH reflect the physics of air and water: they are determined via experimental measurement. Note: the notion that air “holds” moisture, or that moisture dissolves in dry air and saturates the solution at some proportion, is an erroneous (albeit widespread) concept.
Sensible heating occurs when the air temperature increases with any change in its moisture content. A furnace or heat pump would provide this type of change.
Specific enthalpy symbolized by h, also called heat content per unit mass, is the sum of the internal (heat) energy of the moist air in question, including the heat of the air and water vapor within. In the approximation of ideal gases, lines of constant enthalpy are parallel to lines of constant WBT. Enthalpy is given in (SI) joules per kilogram of air or BTU per pound of air.
Specific volume, also called inverse density, is the volume per unit mass of the air sample. The SI units are cubic meters per kilogram of air; other units are cubic feet per pound of dry air.
